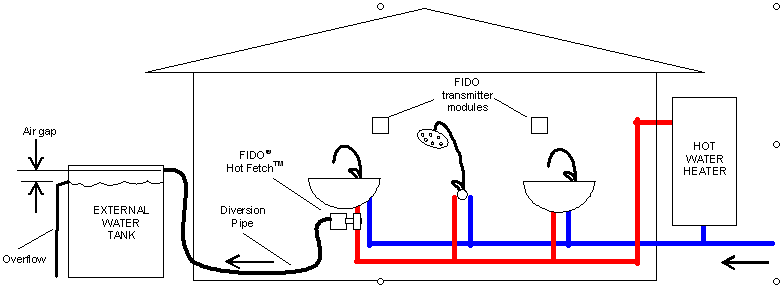

Application - divert to Water Tank
FIDO Hot
Fetch connects to your water tank to
save the water that would have flowed to the drain when you first turn on the
hot tap, and also speeds up its delivery, saving you time.
FIDO enables you
to do other things while waiting for hot water to arrive at the tap, and is
ideal for preparing the water temperature prior to activating the washing
machine for improved results.
When hot water
is desired, the user presses a wireless
button which triggers the FIDO to perform the
hot water retrieval process. When hot water arrives, FIDO automatically terminates the
operation with an audible
signal.
 Product
Brochure
Description
FIDO®
Hot FetchTM
is a simple and intelligent radio linked electronic valve
system designed to purge any cold water from the hot water pipe when hot water
is demanded by the user. The valve is
activated by pressing a remote push button and then intelligently shuts off when hot
water arrives. The unit has built in intelligence and safeguard features to prevent abnormal operation
and to deactivate the device under fault conditions.
See Installation guide ...
FIDO button - Mount on tiles, plaster walls, architraves etc
·
Time saver - FIDO®
accelerates the delivery of hot water to your tap(s), by allowing it to flow at
high speed into a water tank. Hot water can be expected to arrive much faster than it would have
had it passed through a fully open
modern flick mixer tap with aerating flow restrictor.
·
Water saver - save the initial cold water from the hot pipe, which can
exceed 5500litres per year per 2 person household and up to 30,000 in older
style houses.
·
Convenience - Do something else while hot water is being delivered to
your tap, like getting undressed before getting into the shower, or preparing
the dishes before filling the sink.
·
Compatible
- FIDO is compatible with all tap ware including modern mixer sets.
·
Versatile - FIDO® allows the user/installer flexibility of choice as to
the use of the purged water - such as feed to a dedicated water tank connected to toilet
cisterns (urban areas), or return to the main potable supply water tank in rural
applications.
·
User friendly - activate by pressing one of the remote
wireless transmitter buttons supplied. Only purges water if demanded. eg sometimes you
may prefer to use the initial cold water in the sink!
·
Clear status Indicators - Audible & visual indication of purge status.
·
Attractive - easy mount transmitter buttons are an attractive feature to
modern kitchen, bathroom and laundry outfits.
·
Safe operation - The user can leave the tap closed and unattended while hot water is being
delivered. FIDO® has built in safeguards to detect abnormal
and failure conditions and to elegantly lock out operation in such situations.
·
Services multiple outlets - One FIDO® unit can service multiple
taps on a common branch.
·
Energy Saver - FIDO® propels water by mains pressure - so saves energy
compared with automatic, timed, or continuously pumped circulation systems,
which typically waste heat energy heating the pipes unnecessarily .
·
Unique, (patent pending), reliable sensing and control technology
requires no pumping.
